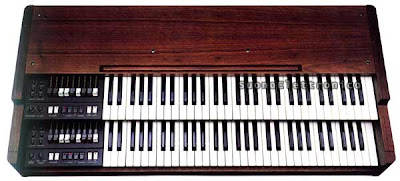

KORG BX3 VINTAGE ELECTRONIC ORGAN


KORG BX3 VINTAGE ELECTRONIC ORGAN

Built-in Chorus/Vibrato, Rotary Speaker Effect and Overdrive.

The New Drawbar-Type 2-Keyboard Electronic Organ that Gives You More.

Two manuals with a full 61 keys each.

Each keyboard is equipped with 9 drawbars: 16', 5-1/3', 8', 4', 2-2/3', 2', 1-3/5', 1-'/3', 1'.

There is also 4' and 2-2/3' percussion with adjustable volume and decay.

Key-click noise is adjustable too, so you can recreate exactly the dynamic rock and jazz organ sound you've been looking for.

Like the CX-3, the BX-3 has built-in rotary effect circuitry that realistically replicates the sound of a rotating speaker, when connected to an ordinary amp !

And for that distorted overdrive sound there is also built-in overdrive circuitry.

There's more:
You have 3 kinds of chorus and 3 kinds of vibrato effects, each with different speed and modulation depth.

These can be applied to either or both keyboards at the flick of a switch.

Instantly switch between the most popular rock, jazz and pop organ sounds with the convenient preset drawbar selectors—there are 3 presets on each keyboard.

Following the worldwide success of the CX-3 Portable Organ, we've now developed the 2 keyboard model you've been waiting for.

The amazing new BX-3 gives you all you demand in an electronic organ, and more.
KORG BX3 ELECTRONIC ORGAN

SPECIFICATIONS

•KEYBOARD: C' C 61 Keys, Double Manual

•CONTROL SECTION. Bracketed facilities are on both upper and lower keyboards DRAWBARS x 9: 16', 5-113', 8', 4', 2-213', 2', 1-315', 1-113', 1'

•PRESET/DRAWBARS: I, II, Ill, Drawbars

•PERCUSSION: 4', 2-213', Percussion Volume, Percussion Decay

•OVER DRIVE

•TONE CONTROLS: Bass, Treble .TUNE: Tune (±50 Cents)]

•ROTARY EFFECT: On, Fast

•CHORUS/VIBRATO: Mode-Chorusx3, VIbratox3, Upper,Lower

•VOLUME: Power & Volume, Key Click Volume, Balance Volume

•INPUTS & OUTPUTS

•OUTPUTS: Signal Outsx2 (High/Low), Accessory Send

•INPUTS: Accessory Return, Rotary Effect (Slow/Fast)

•DIMENSIONS: 1149 (W)x193 (H», 530 (D) mm

•WEIGHT: 22,5kg

•ACCESSORIES: Dust Cover, Connection Cord, 2ch Volume Pedal FK-3, Foot Switch S-1

•POWER CONSUMPTION: Voltage (Local Voltage, 50/60 Hz), Wattage (12 W)
